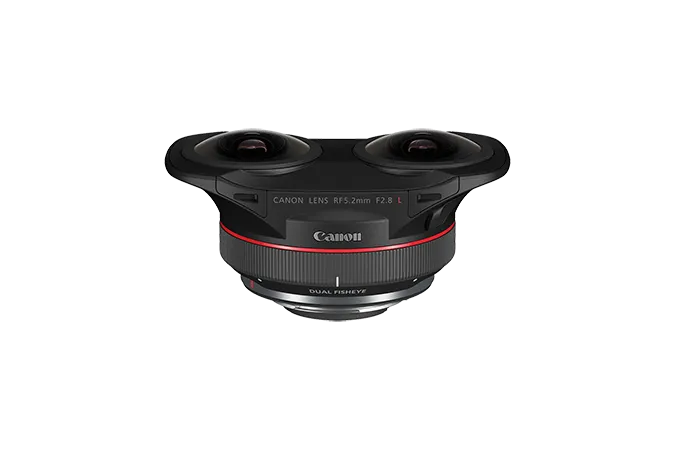

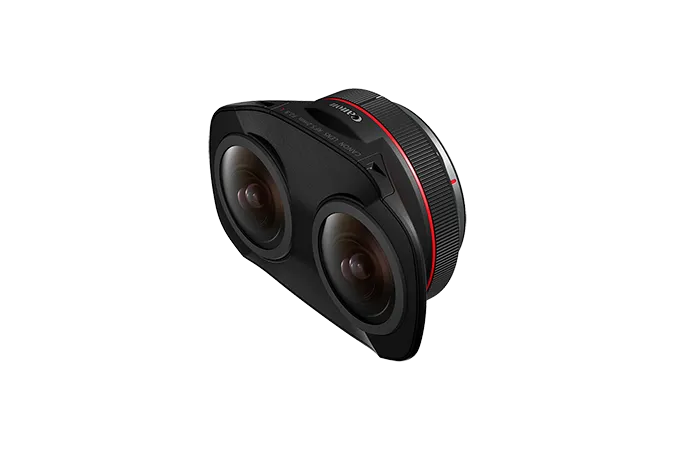

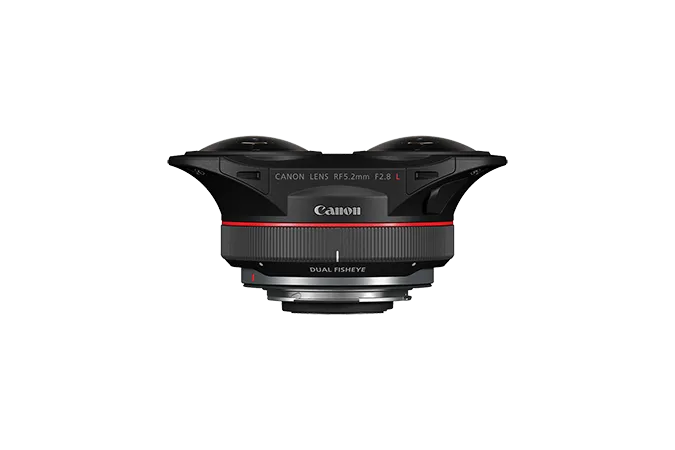

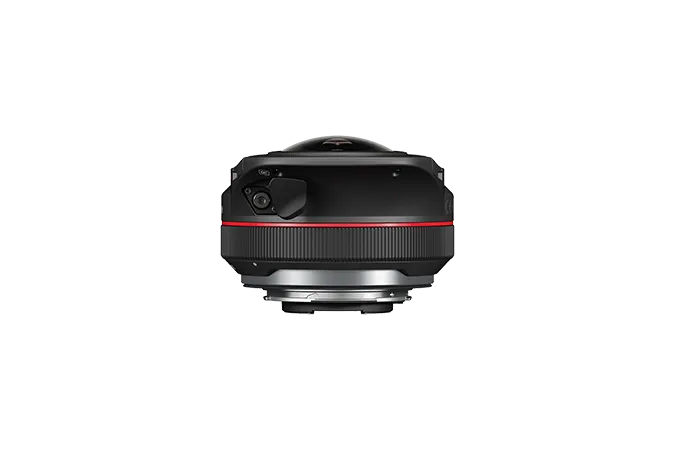

Name: Canon RF 5.2mm f/2.8L Dual Fisheye 3D VR
SKU: 534840

Canon RF 5.2mm f/2.8L Dual Fisheye 3D VR

Canon SKU: 5554C002 | Helix SKU: CA5554C002

Overview

Add a whole new dimension to your story with the RF5.2mm F2.8 L Dual Fisheye lens.

As part of the EOS VR System — this lens paired with the EOS R5 updated with firmware 1.5.0 or higher and one of Canon's VR software solutions - you can create immersive 3D that can be experienced when viewed on compatible head mount displays including the Oculus Quest 2 and more.* Viewers will be able to take in the scene with a vivid, wide degree field of view by simply moving their head. This is the world's first digital interchangeable lens that can capture stereoscopic 3D 180° VR imagery to a single image sensor.*^ Now, creators can go from traditional stills or video shooting to stereoscopic 3D capture with a simple lens swap. The pairing of this lens and the EOS R5 camera brings high resolution video recording at up to 8K DCI 30p and 4K DCI 60p. With a beautifully engineered folded optical design, the dual high-performance L-series fisheye lenses combine imagery onto a single image sensor delivering impressive results to a single file. This can help simplify your workflow by eliminating the need to sync and stitch multiple video files. An integral part of the EOS VR System, Canon's EOS VR Utility software can easily convert footage to your choice of editing software. For Adobe® Premiere Pro® users, the EOS VR Plug-in software can help streamline your editing process. Both paid subscription-based software solutions (currently in development with availability and details to follow on or about early 2022) allow for convenient post-production.

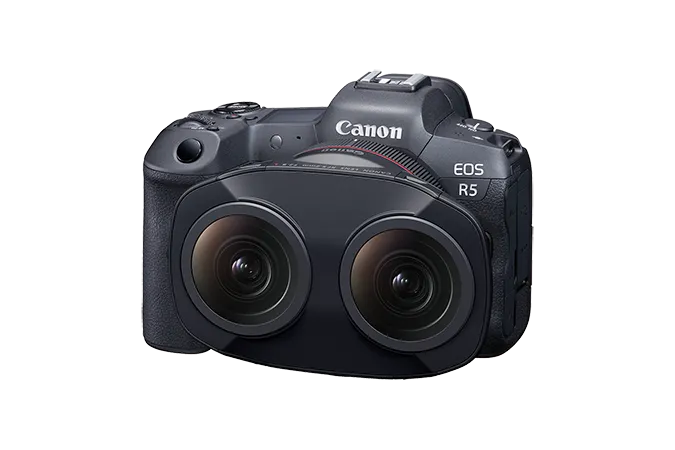

With this lens paired with an EOS R5 camera, creatives, industry professionals and newcomers to VR can create an immersive experience, capturing dynamic scenes for entertainment, tourism, training & education, real estate, storytelling or anywhere you want to bring your audience to.

Specifications

Lens

Focal Length	5.2mm
Maximum Aperture	f/2.8
Minimum Aperture	f/16
Lens Mount Type	Canon RF Mount
Interpupillary Distance/Baseline Length (Distance Between Left and Right Centers)	60mm
Minimum Focusing Distance	0.66 ft. (7.9 in.) / 0.2 m
Maximum Magnification	0.03x
Angle of View (Diagonal)	190° 00'
Lens Construction (Each Lens)	12 elements in 10 groups
Special Elements (Each Lens)	Two UD glass elements
Lens Coating	Canon SSC (Super Spectra Coating) Canon SWC (Sub-wavelength Structure Coating) Fluorine Coating on front surface of front element
Filter Size Diameter	Supported – Built-in
Aperture Blades (each Lens)	7
Lens Switches	None
Dust/Water Resistance	Provided (rubber ring on lens mount)
Focusing System	Manual focusing
Left Right Focus Difference Adjustment	User-adjustable, via adjustment dial (using included 1.5mm hexagonal wrench)
Dual Pixel CMOS AF	Not Supported — Manual focus only
Focus Guide	Supported – Alternate at image center of either selected lens UI by INFO button with cameras equipped with compatible firmware.
Manual Focus Peaking	Supported with compatible cameras.
Full-Time Manual Focusing	Not Supported
Control Ring	Not Supported
IS Mode Selection	Not Supported
Optical Image Stabilization	Not Supported
Dimensions (W x H x L)	4.8 x 3.3 x 2.1 in. (121.1 x 83.6 x 53.5mm)
Weight	Approx. 12.4 oz. (350g)

Accessories

Lens Hood	Not Supported
Lens Cap	Dedicated Canon Lens Cap 5.2 (Center pinch type; bundled)
Dust Cap	Canon Lens Dust Cap RF
Lens Case	Canon Lens Case LS1014 (bundled)
RF Tele Extenders	Not Compatible
EF Extension Tubes	Not Compatible
Close-Up Lenses	Not Compatible
Canon Gelatin Filter Holder IV	Not compatible; Built-in gelatin filter holder at rear of lens
Left/Right Focus Difference Adjustment Hexagonal Wrench	Bundled –1.5mm hexagon wrench
